30tons Pulling Winch Recovery Vehicle Winch Hydraulic for Timber Trailer
» Main Application
Our YJP series hydraulic winch is widely used in Recovery & Rescue vehicle. YJP300 hydraulic winch save valuable time when it comes to recovering vehicles or removing obstacles. In the event of accidents and other critical applications they provide safe and reliable help in difficult situations.
» Performance of Hydraulic Winch
| Main Performance of YJP300 Hydraulic Winch |
| Model | YJP300 |
| Rated line pull (1st layer) | KN / kgs / lbs | 294 / 30000 / 66000 |
| Line speed (1st layer) | m/min | 5.5 |
| Response pressure of brake | MPa/Bar | <2.5 / 25 |
| Oil pressure | MPa/Bar | 17 / 170 |
| Oil flow | L/min | 120 |
| Drum diameter*Bottom diameter*Length(internal) | mm | 530*280*360 |
| Drum capacity | m | 54 |
| Suggest high-intensity wire rope diameter | mm | Φ32 |
| Net weight | kg | 570 |
» Product structural drawing
» Features of Hydraulic Winch
1. Full-float typed planetary gear reducer makes the operation more stable, the structure more reasonable.
2. Adopt multidisc-typed friction normally-closed arrester makes the brake torque larger, safer and more reliable.
3. The product is featured by its small size, compact construction and high transmission efficiency.
4. Free wire releasing function.
5. Adopt motor with long use life.
6. The installation bracket can be manufactured according to the customer's requirement.
7. According to the requirement of customers, manufacture the balance valve and shuffle valve special for this winch.
8. Adopt manual, pneumatic clutch equipment.
» Company Profile
Jiangyin Zhongxin Engineering Equipment Co.,Ltd is a specialized company which undertakes the research, development, production, marketing and service of hydraulic winch and hydraulic lifting winch.
Our customer and business partners profit from our decades of experience and our close cooperation with international renowned companies and military sectors.
Reach out to us for a complimentary consultation.
Product Tags:
|
|

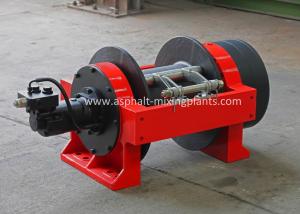

30 Tons Hydraulic Recovery Winch Images
|
